Installation Guide - Linux Version (using Denbun IMAP update version [tar file])

This guide describes how to install Denbun IMAP Update version of tar on Linux server.
This explanation assumes that the server OS is a Linux and the web server is using Apache Server.
Please refer to the system requirements on the product web site for Linux distribution supported.
The following installation process is assuming that the executable directory is "/var/www/cg-bin/dnwml" and Denbun is installed there.
* It is not possible to uninstall Denbun IMAP Update version only.
Before installation...
  1. Stop all the Connection poolings by Management Tool and make sure no access to the Denbun.
    (If a connection pooling is activated, update may be failed)
  2. Backup all the modules and data of Denbun.
    Backup all the data in /var/www/cgi-bin/dnwml and /var/www/html/dnwmlroot directories.

1. Upload the file to the server

Upload the file you downloaded to the server by using FTP tools (freeware or Windows FTP command).

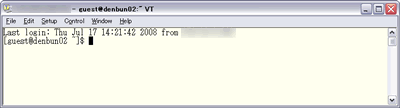

2. Login by using telnet

Login to the server by using telnet tool (freeware or Windows telnet tool).

Installation Guide - Linux Version (using gz file) - 4

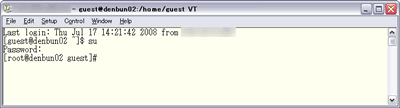

3. Switch to root user

Use su command to switch to the root user.

Installation Guide - Linux Version (using gz file) - 5

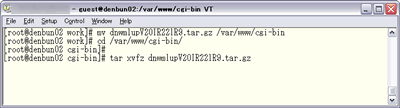

4. Extract archive

Move uploaded file to the directory that Denbun is installed. It assumes that the installation directory is "/var/www/cgi-bin".

Installation Guide - Linux Version (using gz file) - 7

Use tar command to extract the tar file.

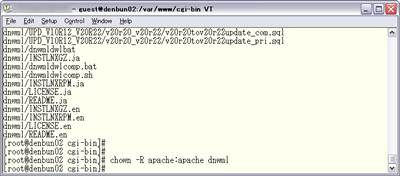

6. Change owner

Change the owner of the directory "dnwml" that Denbun is installed.
If Denbun is installed in "/var/www/cgi-bin/dnwml", set "User ID" and "Group ID" of the directory to the user who provides HTTP service
(It assumes that both "User ID" and "Group ID" is "apache").

Installation Guide - Linux Version (using gz file) - 7

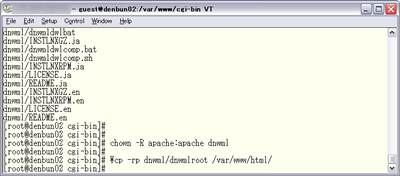

6. Move dnwmlroot to document root

Move dnwmlroot directory extracted to the web server's document root.

Installation Guide - Linux Version (using gz file) - 7

* Please overwrite all the files.
* dnwmlroot directory might not be included in certain type of update module.
* After copying all the files in dnwmlroot, you can delete dnwmlroot directory in dnwml.

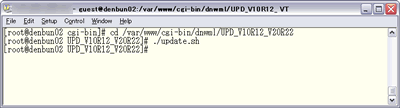

7. Run convert module

After the installation, convert the data.
To convert the data, use the following command.
* The directory "UPD_VxxRxx_VxxRxx" might not be included in certain type of update module.
 If the directory does not exist, you do not have to execute the convert module.

Installation Guide - Linux Version (using gz file) - 7

If anything is displayed after executing update.sh, the conversion terminated normally.

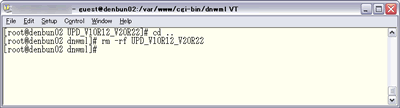

After the conversion, delete the directory, UPD_VxxRxx_VxxRxx.
If you need the log, move UPD_VxxRxx_VxxRxx/log to any directory.

Installation Guide - Linux Version (using gz file) - 7

rm -r /var/www/cgi-bin/dnwml/dnwmldata/share/excitetrans

rm -r /var/www/cgi-bin/dnwml/dntranslation.cgi

8. Security Measure [Important]


9. Access to Denbun

After complete the above steps, use browser such as Internet Explorer to access to Denbun.

URL e.g.
http://(servername)/cgi-bin/dnwml/dnwmlconfig.cgi?

* Your server's IP Address or Host name should be specified in "servername".

Installation Guide - Linux Version (using gz file) - 7

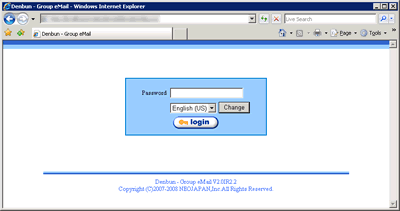

Make sure that the updated version number is displayed on the login screen.

1. Uninstallation

If you uninstall Denbun update version only, Denbun will never work.
Please never uninstall the update version.
* Please be careful because you are root user.
