Add New Directory Service

Click [Add New] button in the list of directory services.

Add New

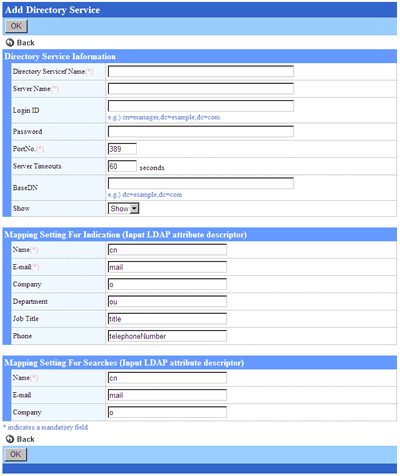

Add New Directory Service

Directory Service Information

Specify the detail information about the directory service.
* Directory Service Name, Server Name, Port No., Name (Mapping Setting For Indication), E-mail, Name (Mapping Setting For Searches) are mandatory fields.


Directory Service Information
Specify the connection information for the LDAP server.
Directory Service Name Specify the name of the directory service (for Display).
Server Name

Specify the name of the LDAP server or the IP address.

Login ID Specify the Login ID for the LDAP server.
Password

Specify the password for the LDAP server.

Port No. Specify the port No. of the LDAP server.
Server Timeouts

Specify timeouts when searching.

Base DN Specify Base DN when searching.
Show

Choose whether show or hide the directory service.
* If you choose "Hide", the directory tab in the main screen of the Address Book is hidden.


Mapping Setting For Indication
Specify the mapping information for the search results of the directory service. Specify an attribute description for each field. The data for the attribute will be shown in the field of the address book.
Name Specify the attribute description for the Name field of the address book.
Name (Kana)

This field is available only for Japanese user interface.

E-mail Specify the attribute description for the E-mail field of the address book.
Company

Specify the attribute description for the Company field of the address book.

Department Specify the attribute description for the Department-1 field of the address book.
Job Title

Specify the attribute description for the Job title field of the address book.

Phone Specify the attribute description for the Phone field of the address book.
* In the default, general attribute descriptions are set for the fields. Please edit the attribute for your service.

Mapping Setting For Searches
Specify the mapping information when searching the directory service.
Specify an attribute description for each field. The search performs with the attribute you specified.
Name Specify the LDAP attribute description as used for Name.
Name (Kana)

This field is available only for Japanese user interface.

E-mail Specify the LDAP attribute description as used for E-mail.
Company

Specify the LDAP attribute description as used for Company.

* In the default, general attribute descriptions are set for the fields. Please edit the attribute for your service.
* If you do not specify the attribute, you cannot search in the field.


Directory Service Information

Click [OK] button to save the changes.
