Benchmarking - Test Results (Server Load)

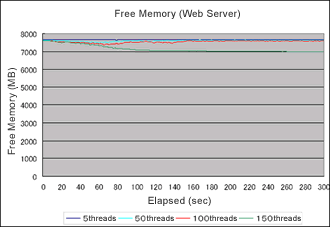

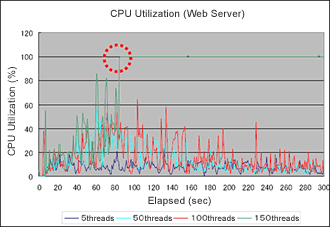

Web Server Load (CPU Utilization, Free Memory）
 |
 |
In CPU Utilization, it reaches 100% after 90 seconds We can find that 100 threads is the maximum limit in the test environment.

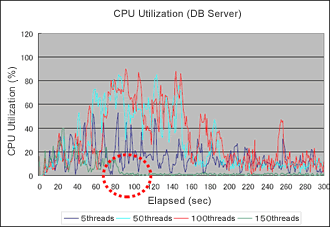

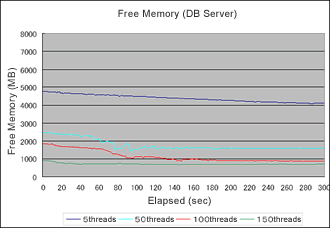

Database Server Load (CPU Utilization, Free Memory）
 |
 |
The CPU Utilization in the database server stays below 100%. With 150 threads, the CPU Utilization is 0% after 90 seconds. We can find that there is no server load because the CPU Utilization reaches 100% in the web server.
In Free Memory, decreasing memory space is in proportion to increasing number of threads.The resource may be enough because there is no memory swap in 150 threads.
